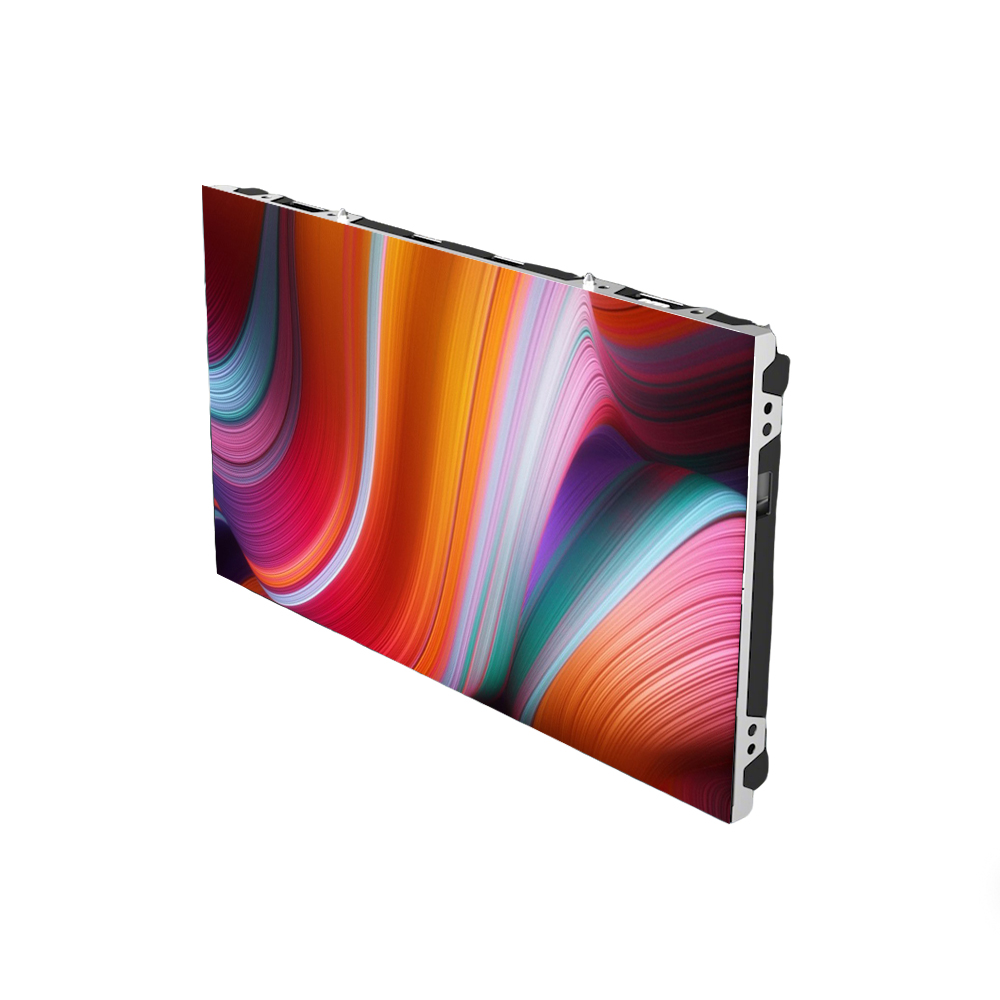

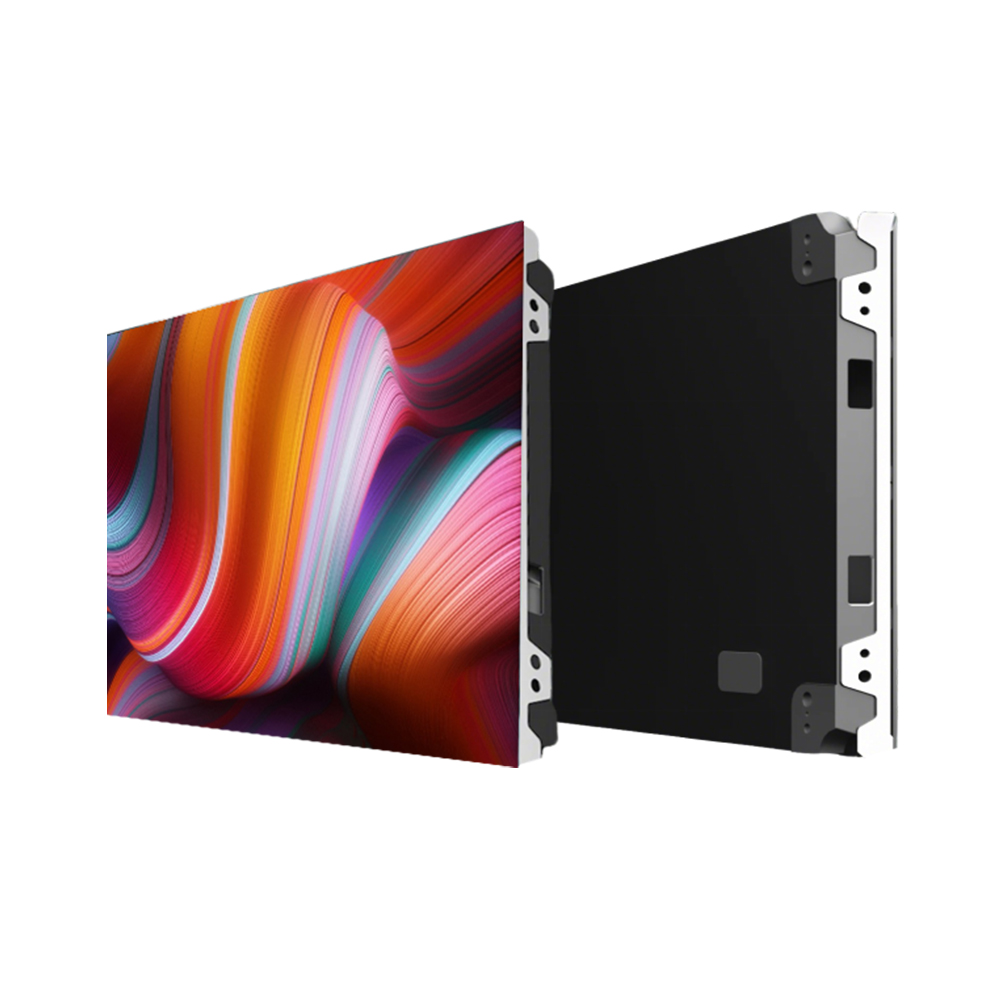

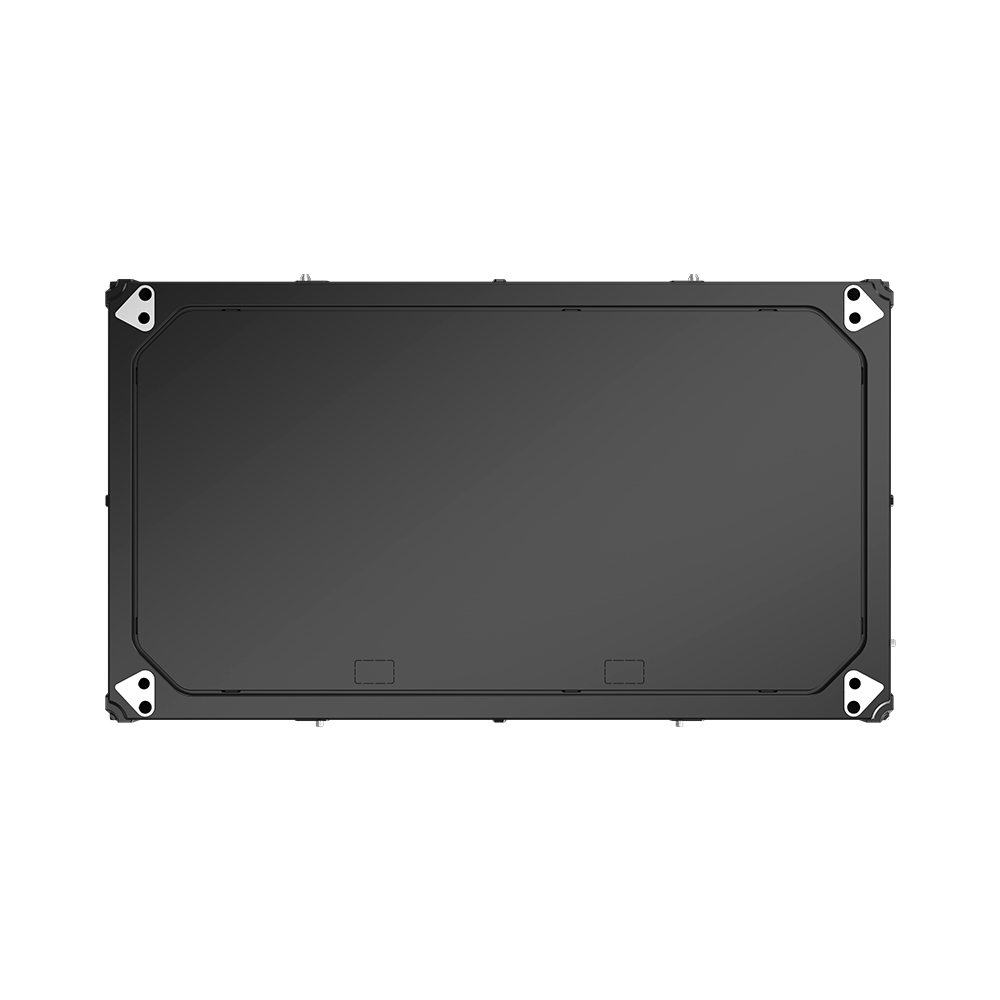

GM-0.93 COB
The GM series is a self-developed ultra-high-definition product targeting the fine-pitch LED display market. It is mainly used in various control fields such as security monitoring, command dispatch, video conferencing, and broadcasting for high-quality display applications.
Parameter
Application ： Indoor Media/LED kiosks/LED Message Board
Pitch ： 0.937mm
LED Package ： COB
Brightness ： 600~1000 nits
Module Pixel ： 640*369 pixels
Cabinet Size ： 600*337.5*37.7mm
info@ggdisplay.com
QR code
Detail

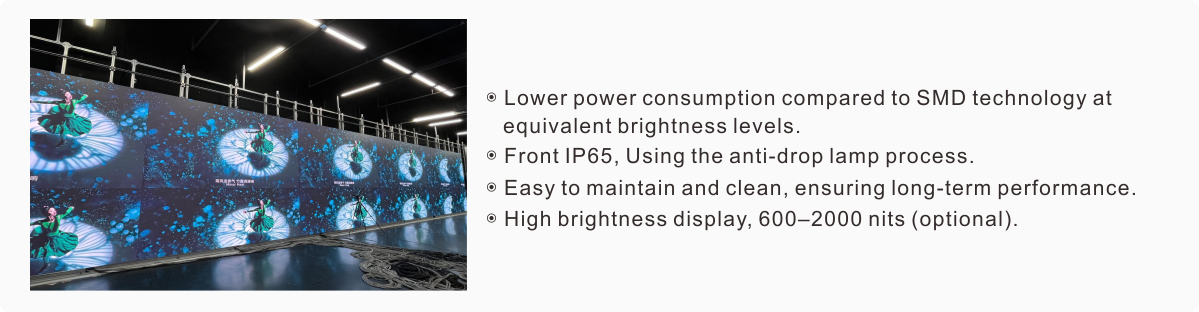

Why Choose Our COB?
_
Comparison of 1st Gen, 2nd Gen and 3rd Gen
_

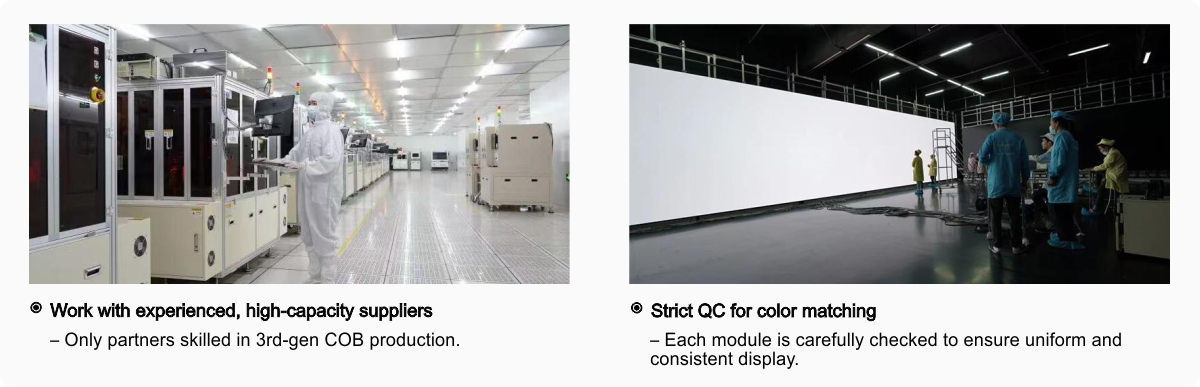

How We Keep COB Displays Consistent
_

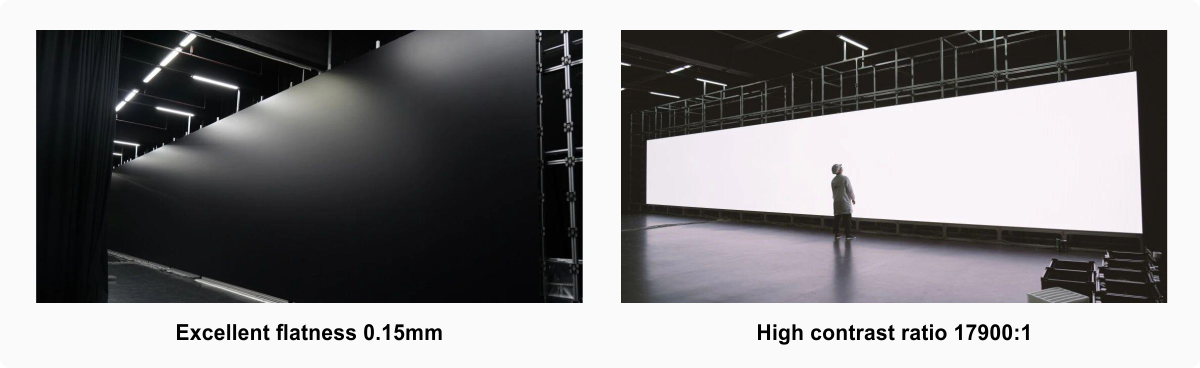

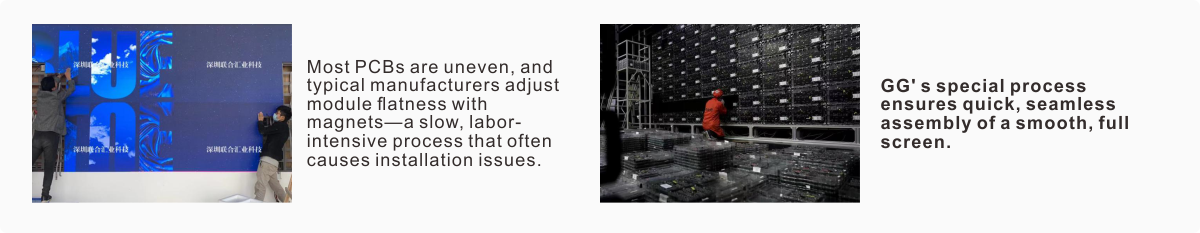

High Flatness & Easy Installation
_
Product Parameters
_
| Item | Parameter |
| Part Number | GM-0.93 |
| Pitch | 0.937mm |
| Brightness | 600~1000 nits |
| LED Package | COB |
| Color Temperature | 3000~10000k |
| Cabinet Flatness(mm) | 0.15 |
| Cabinet Size | 600 x 337.5 x 37.7mm |
| Module Pixel | 640 x 369 |
| Weight | 4.1kg |
| AC Input Power Maximum Value | 310（W/m²） |
| AC Input Power Typical Value | 105（W/m²） |
| Operation Power | AC100~240v |
| NTSC Color Gamut | 105% |
| Grayscale | 13/16 bit |
| Contrast Ratio | 17900:1 |
| Viewing Angle | 165°/165° |
| Scan | Jan-54 |
| Refresh | 1920 ~ 3840Hz |
| Working Temperature | -10～+40℃ |
| Humidity | 10%～+90% |
| Module Flash | Yes |
| Point-By-Point Calibration | Yes |
Product Features
_

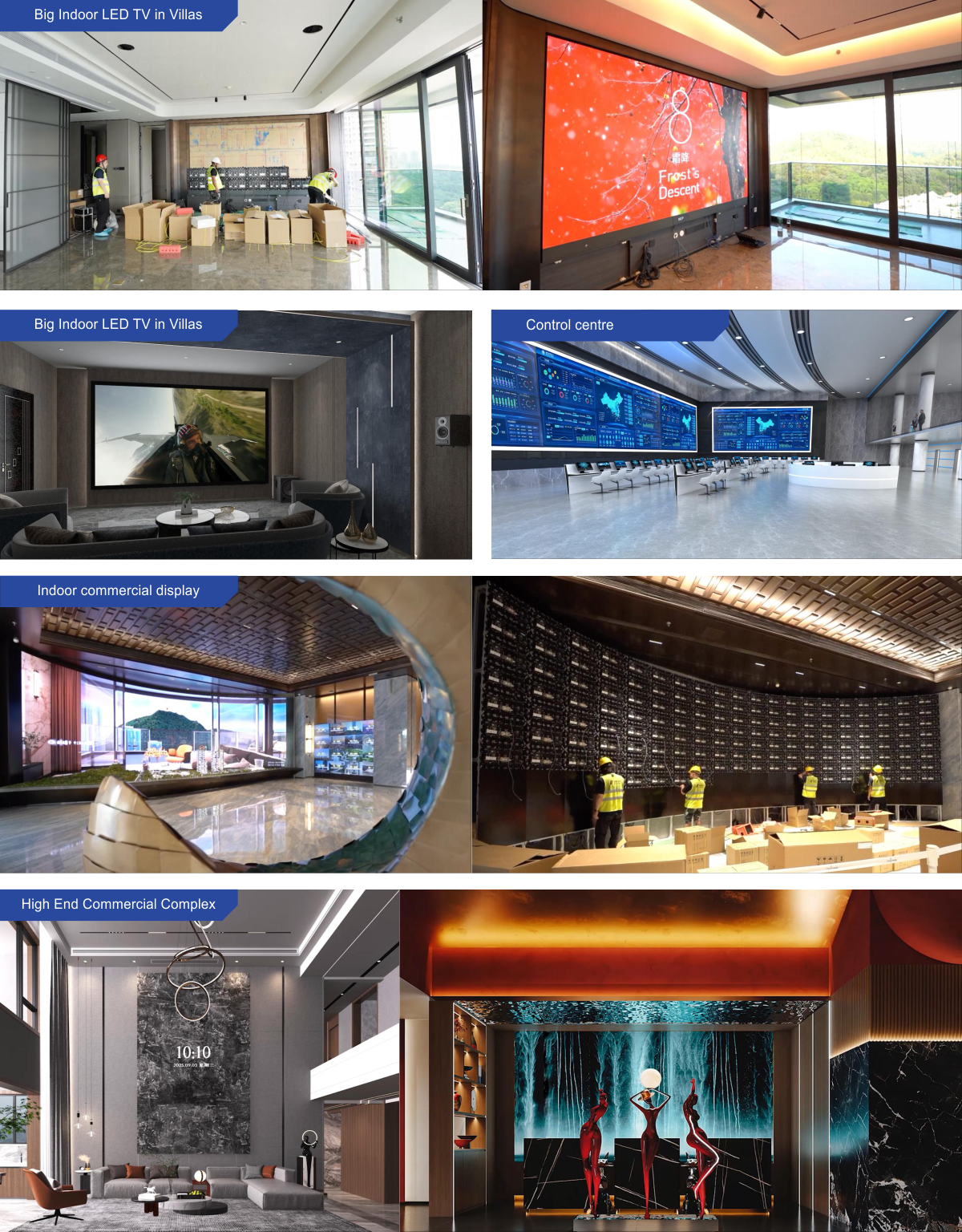

Application
_
