GMax-12

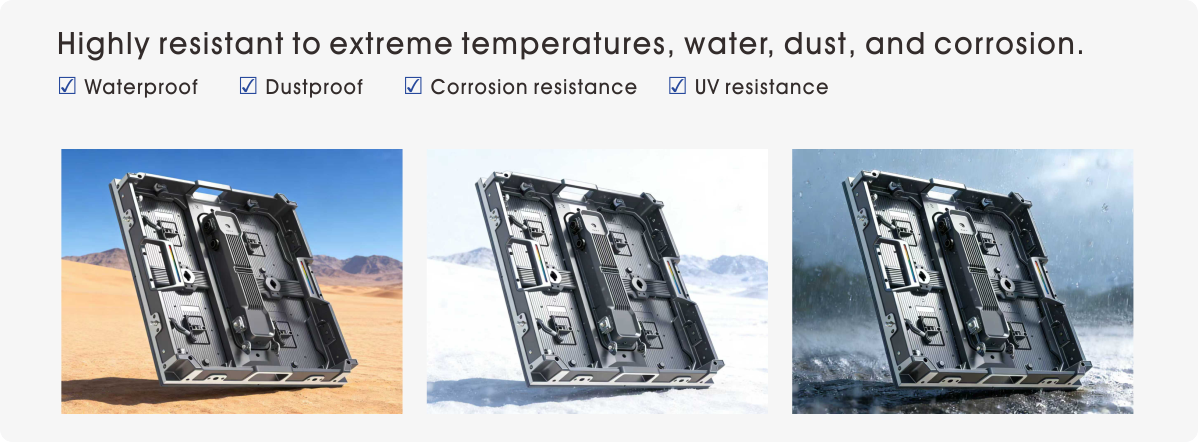

☑ Full IP65 design both front&back side
☑ 25% less power consumption, lower temperature on LED
surface
☑ 2~3 years Long warranty
☑ 7-10 years life time
☑ Outdoor 3500nits
☑ 16:9 optimal display ratio display mode
☑ Anti-collision with GOB
☑ 10000:1 contrast ratio
☑ 7680HZ high refresh rate

Parameter

Application ： OOH Media/LED kiosks/LED Message Board

Pitch ： 1.25mm

LED Package ： MIP 0606 common cathode

LED Type ： 3 in 1

Brightness ： 3500~4000nits

Module Size ： 240 x 270x12 mm

Module Pixel ： 192*216pixels

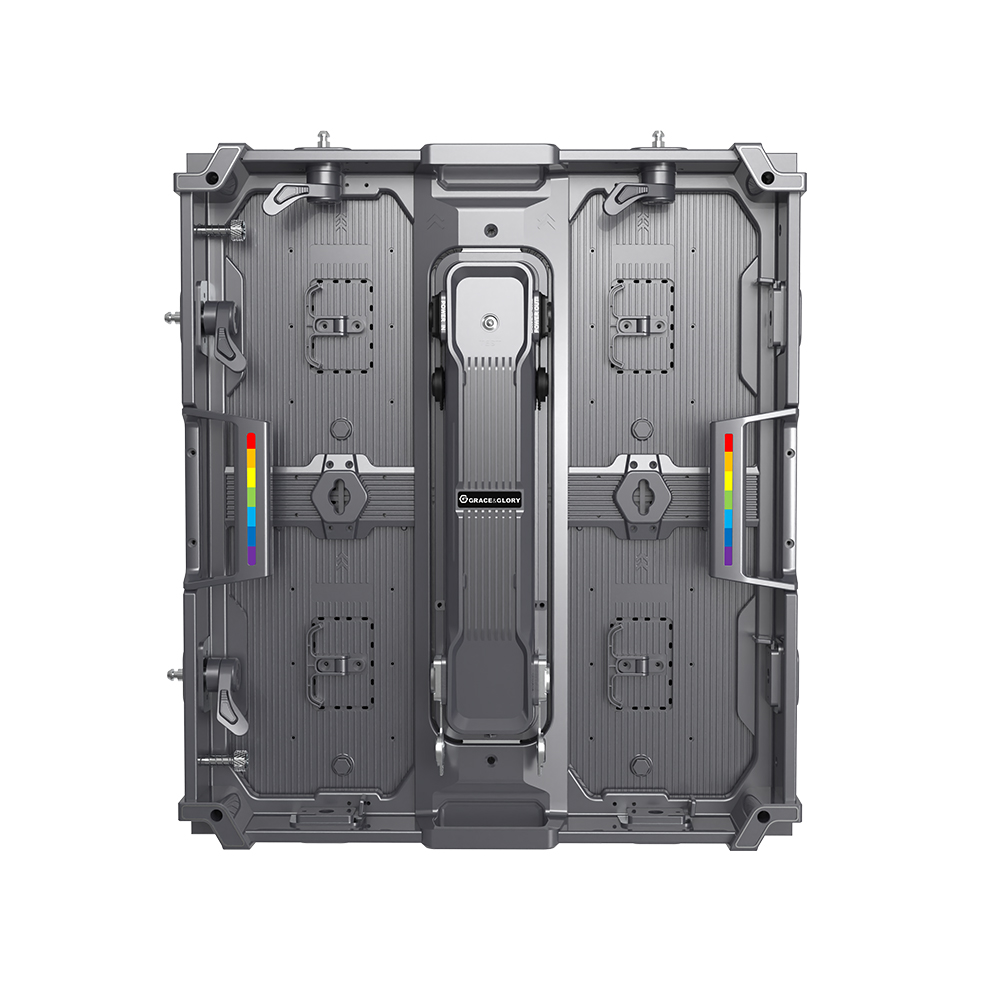

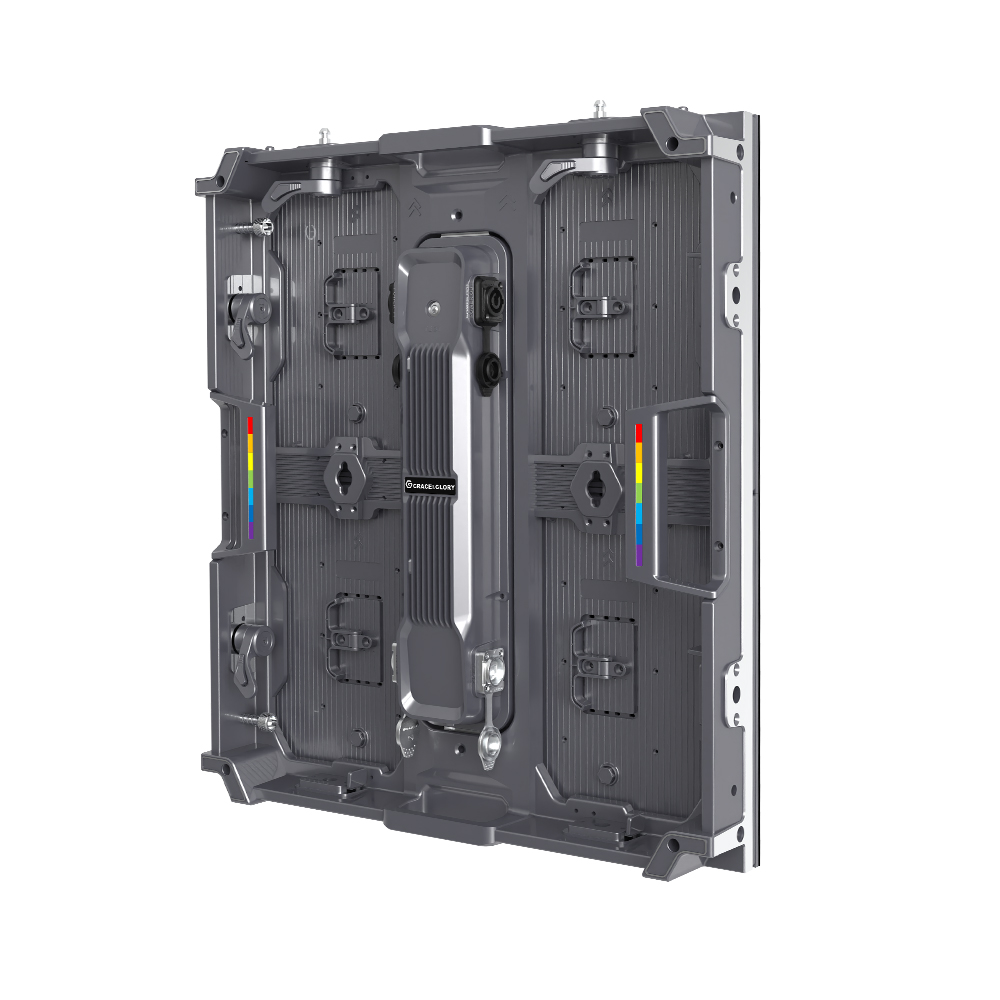

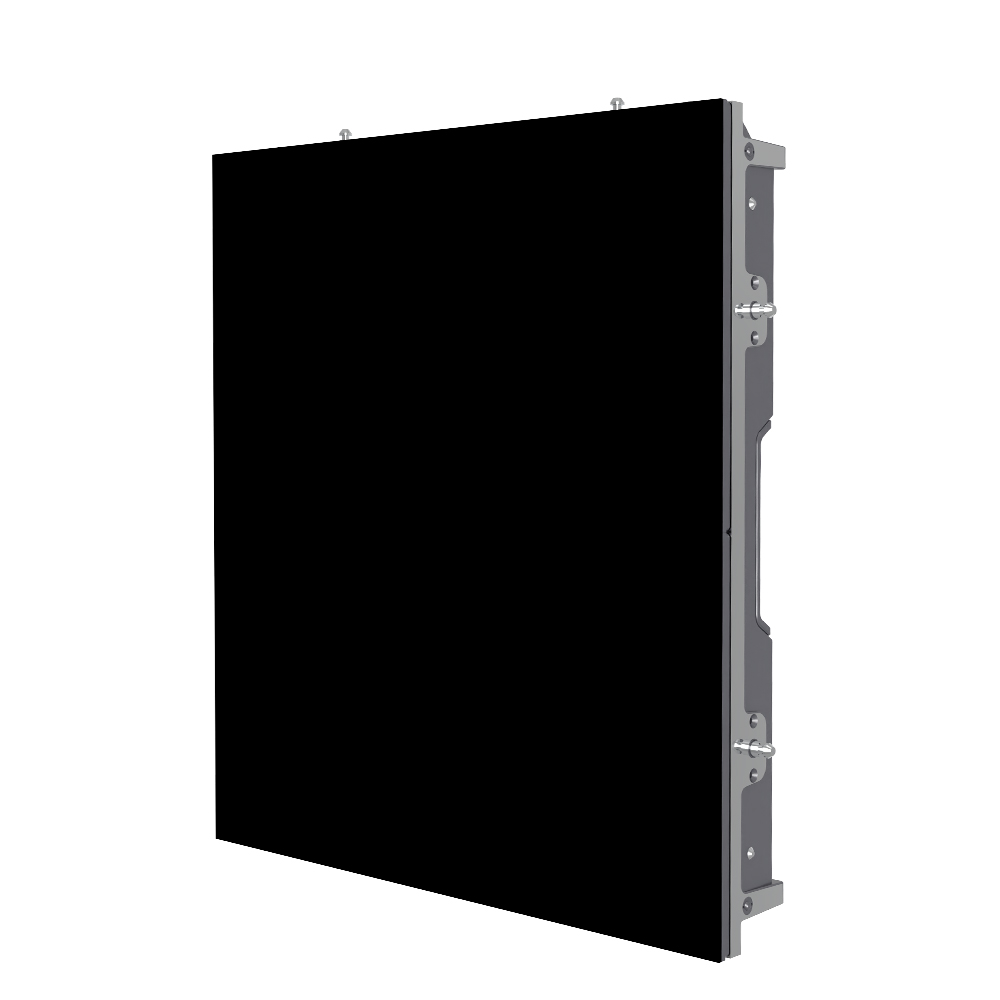

Cabinet Size ： 480*540

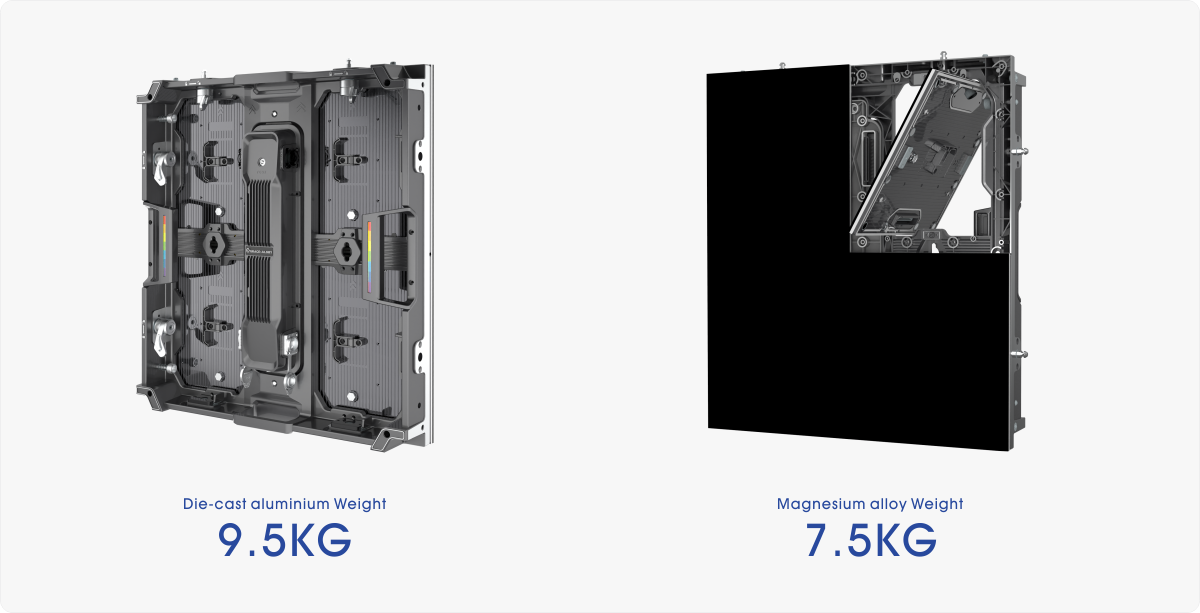

Housing Material ： Die-cast aluminum / Magnesium alloy

Cabinet Weight ： 9.5kg / 8kg

Maximum Power(W/sqm) ： 625

Typical Power(W/sqm) ： 188

Operation Power ： AC100~240v 50/60HZ

IP Grade ： Front/Back IP65

Grayscale ： 16 bit

Viewing Angle ： 160°/160°

Refresh ： 7680Hz

Working Temperature ： -20～ +60℃

Humidity ： 10% ～ 90%

Maintenance ： Front/Back

Operating Life ： 100,000hours

info@ggdisplay.com

QR code

Prev: GMax-15

Next: GTV-15 (Outdoor 75inches)

Detail

Product Features

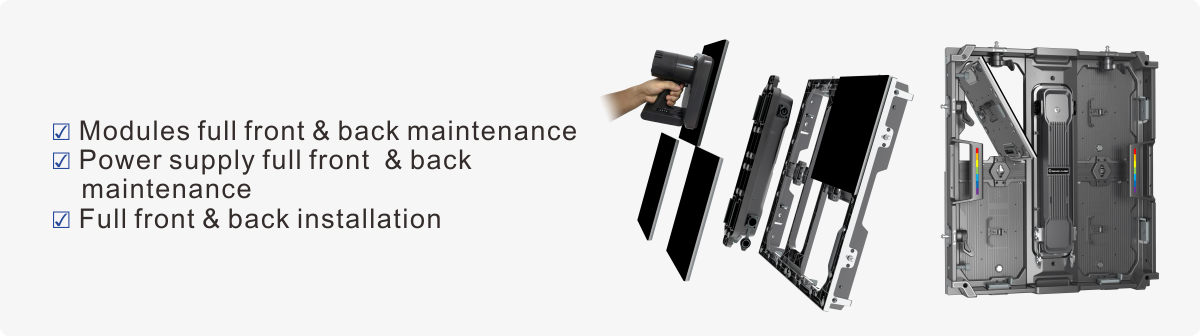

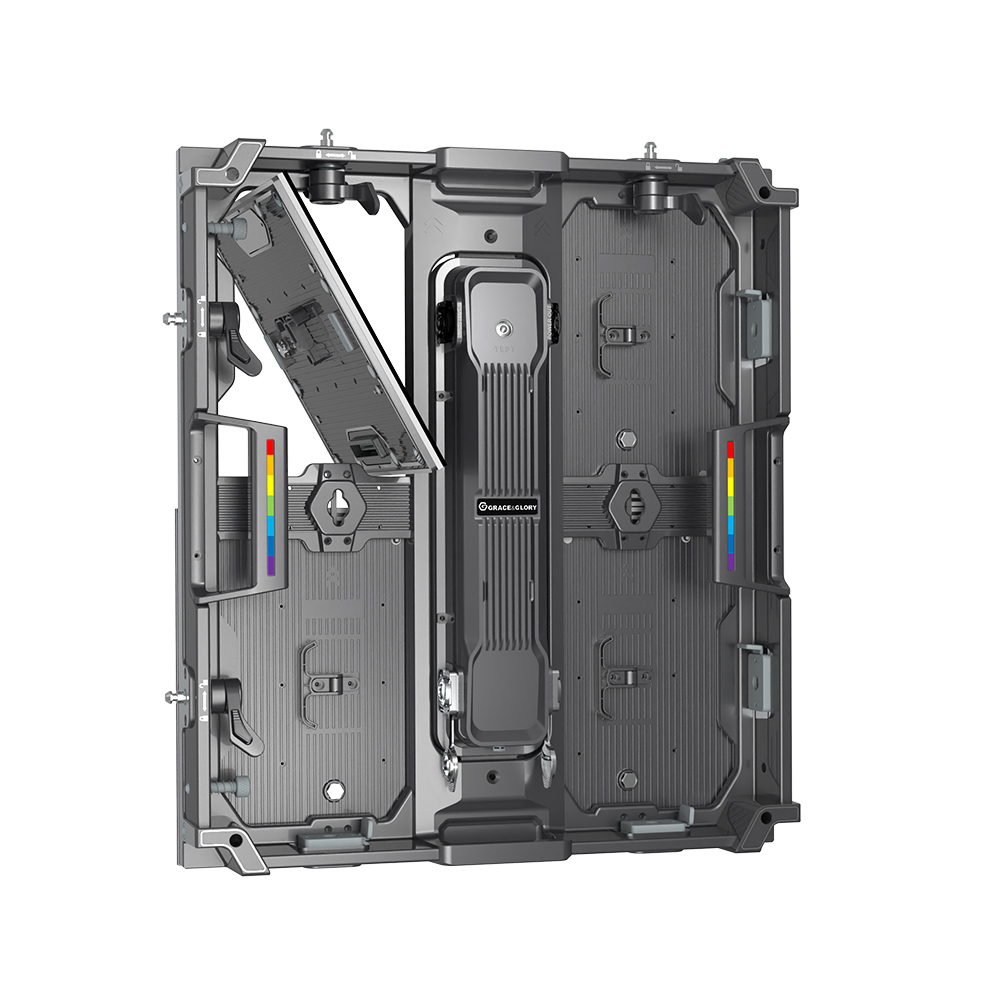

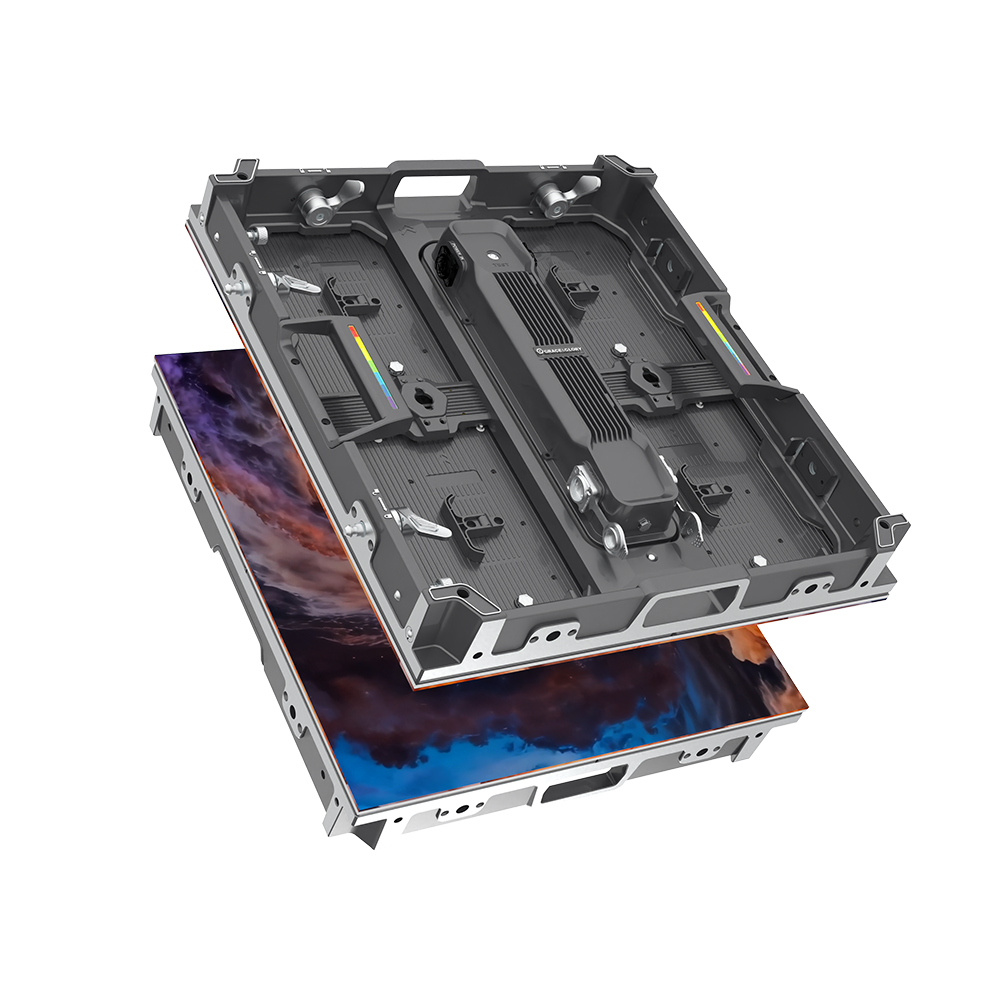

Full front & back maintenance

IP65 for front & back

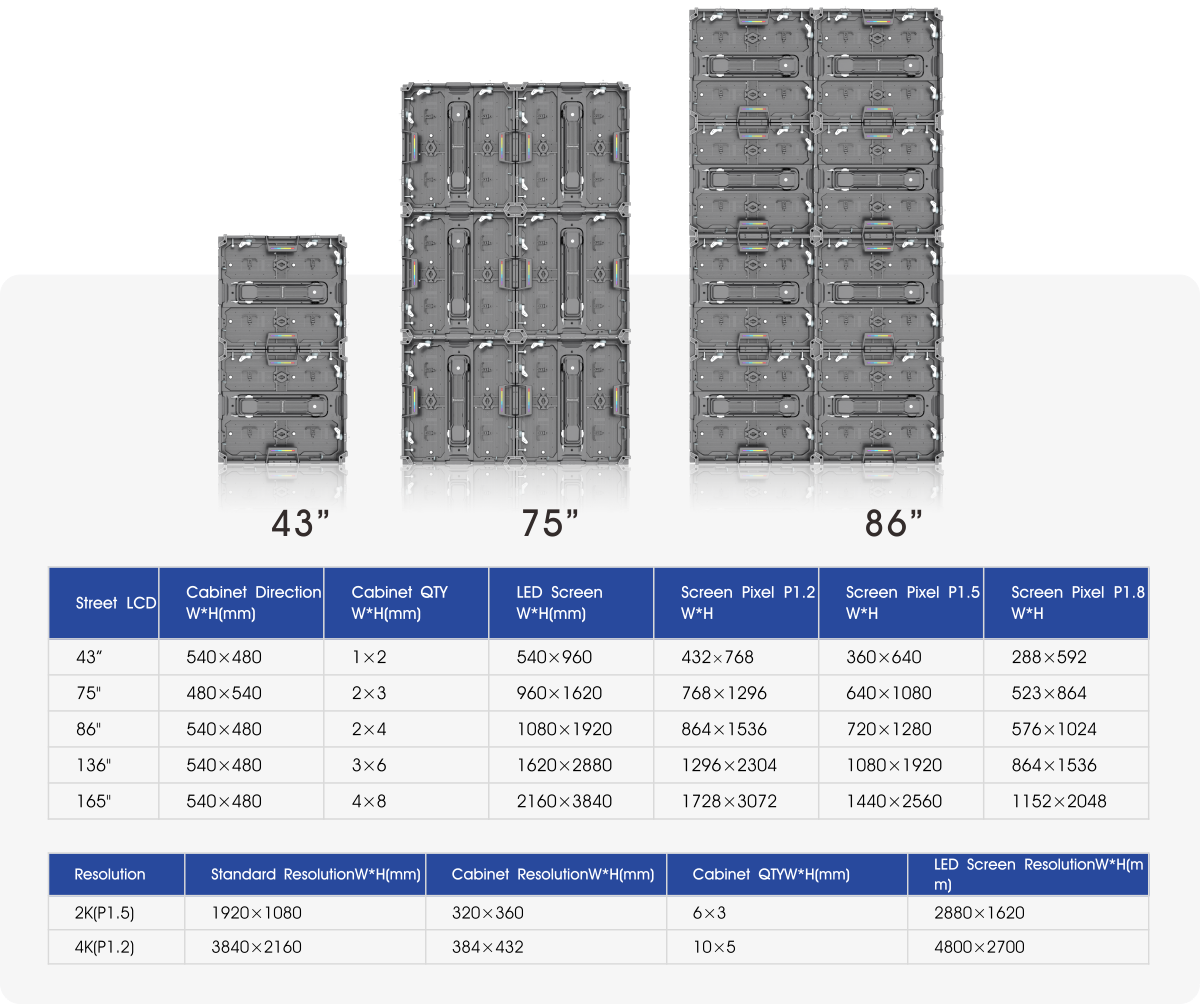

16:9 Display Ratio By Horizontal or Vertical

Can be replaced the on street LCD screen or Outdoor TV without changing the out shelter.

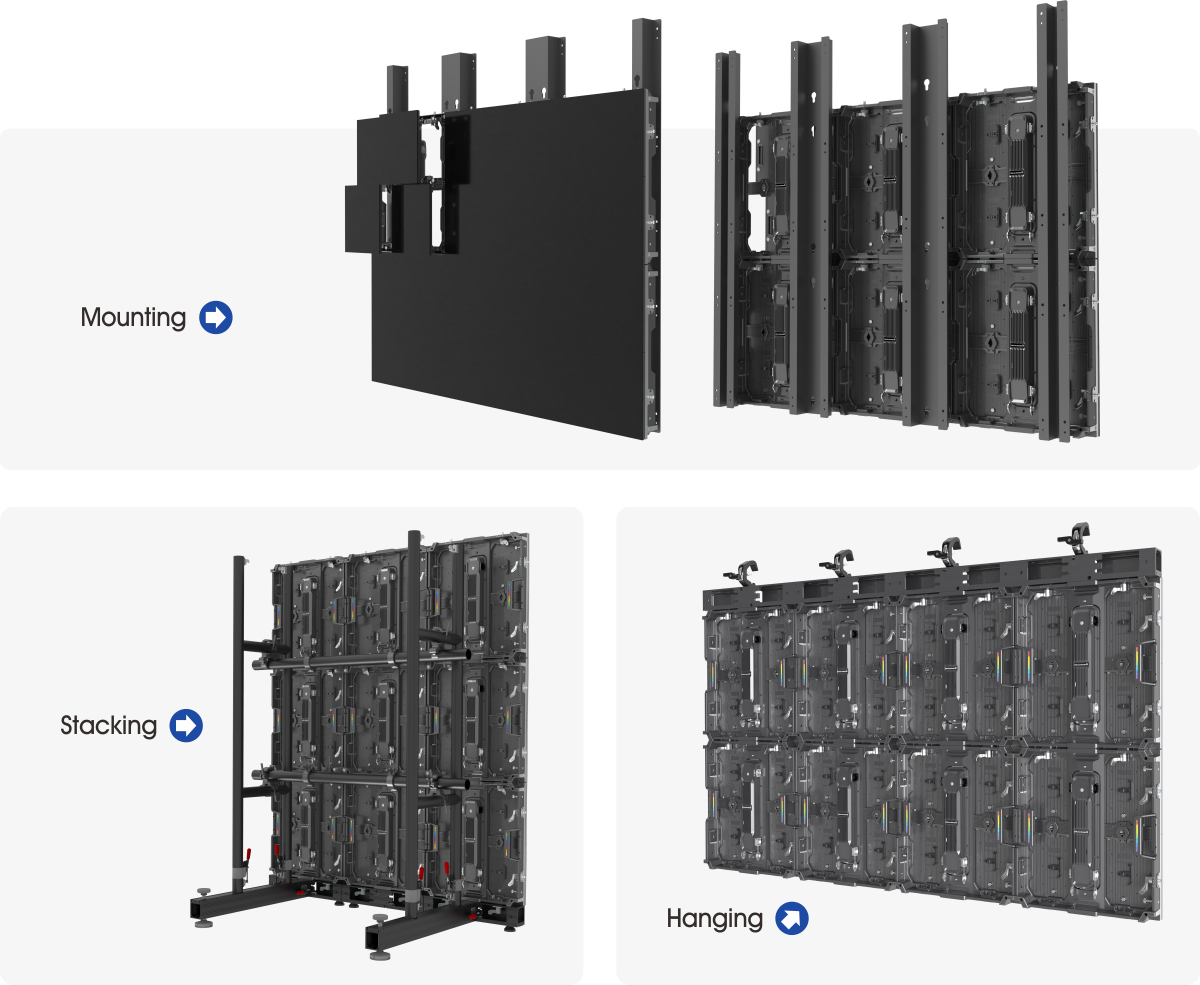

Support all kinds of installations easily

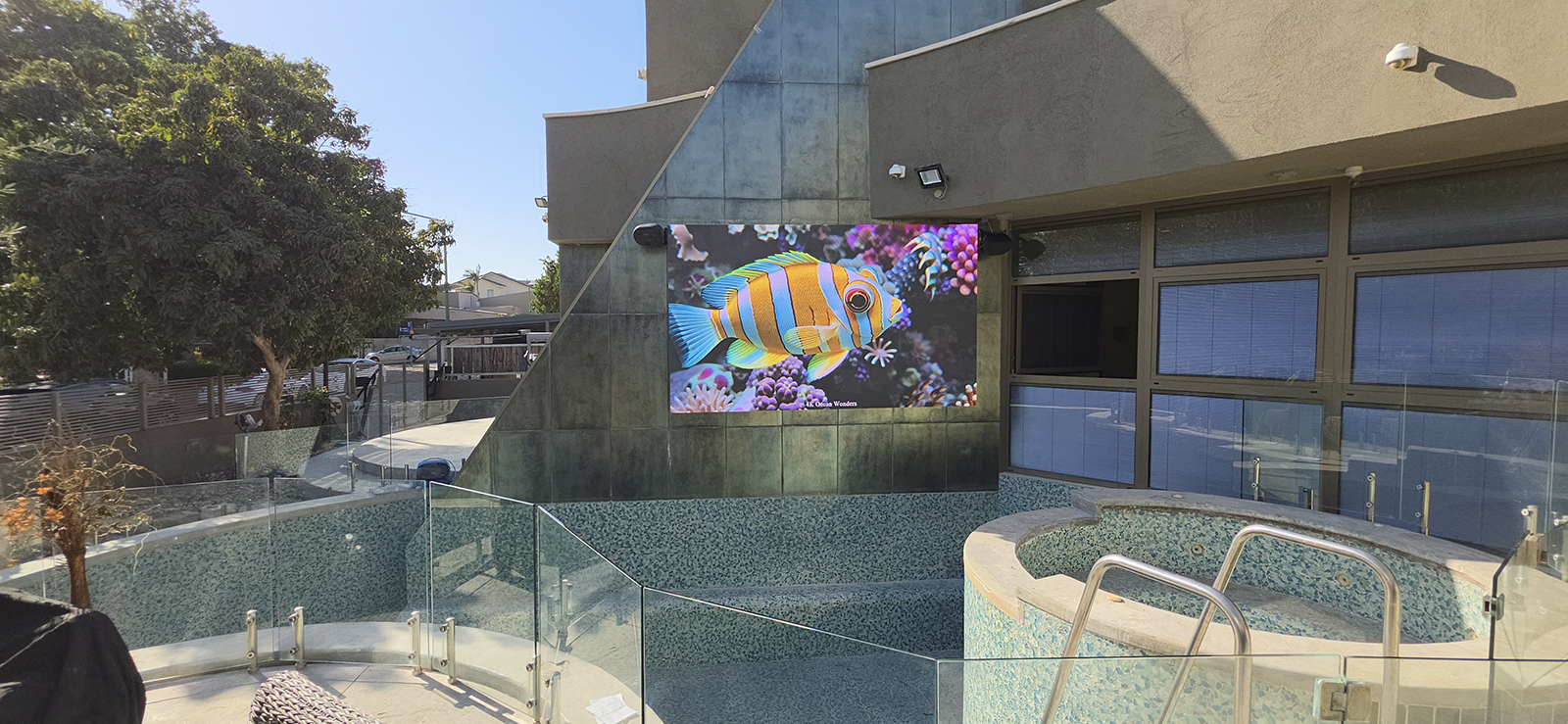

Project Case

Middle East Outdoor P2.8

Justice, goodness, joy, humility, purity, faithfulness, gentleness, self-control
