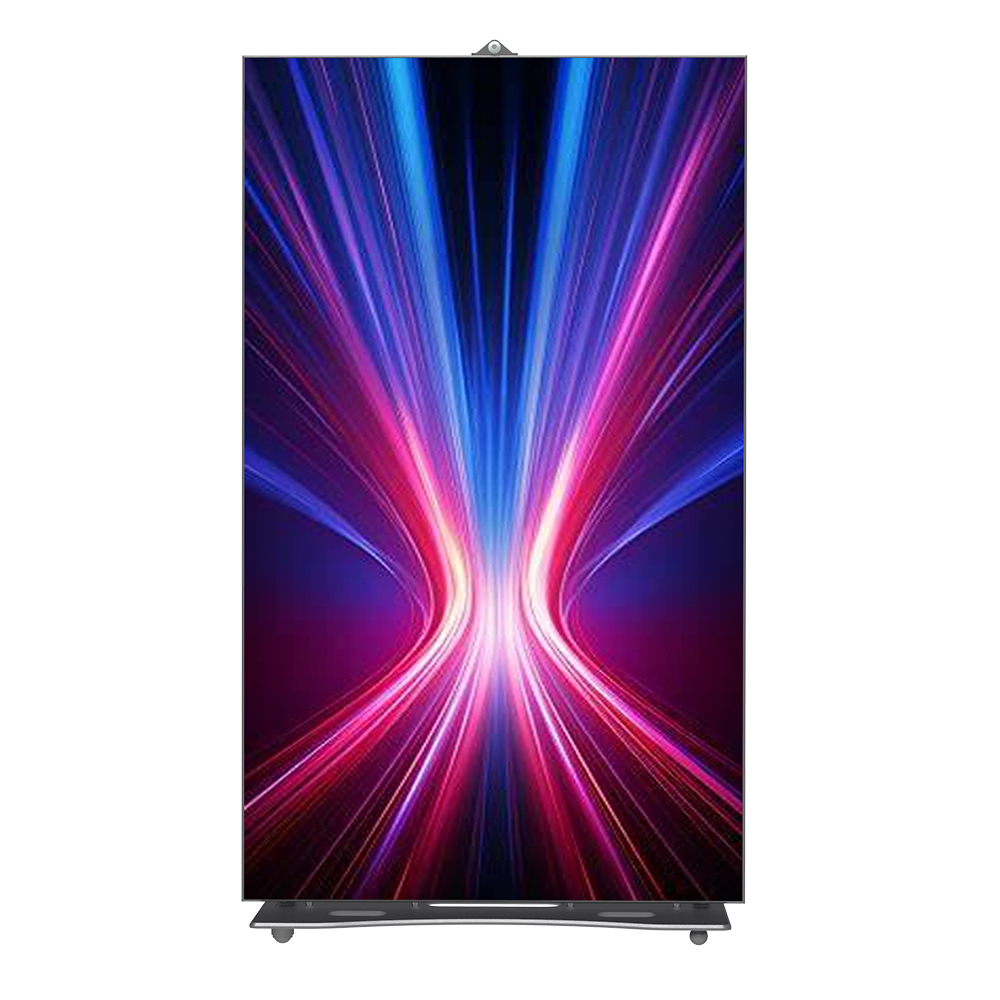

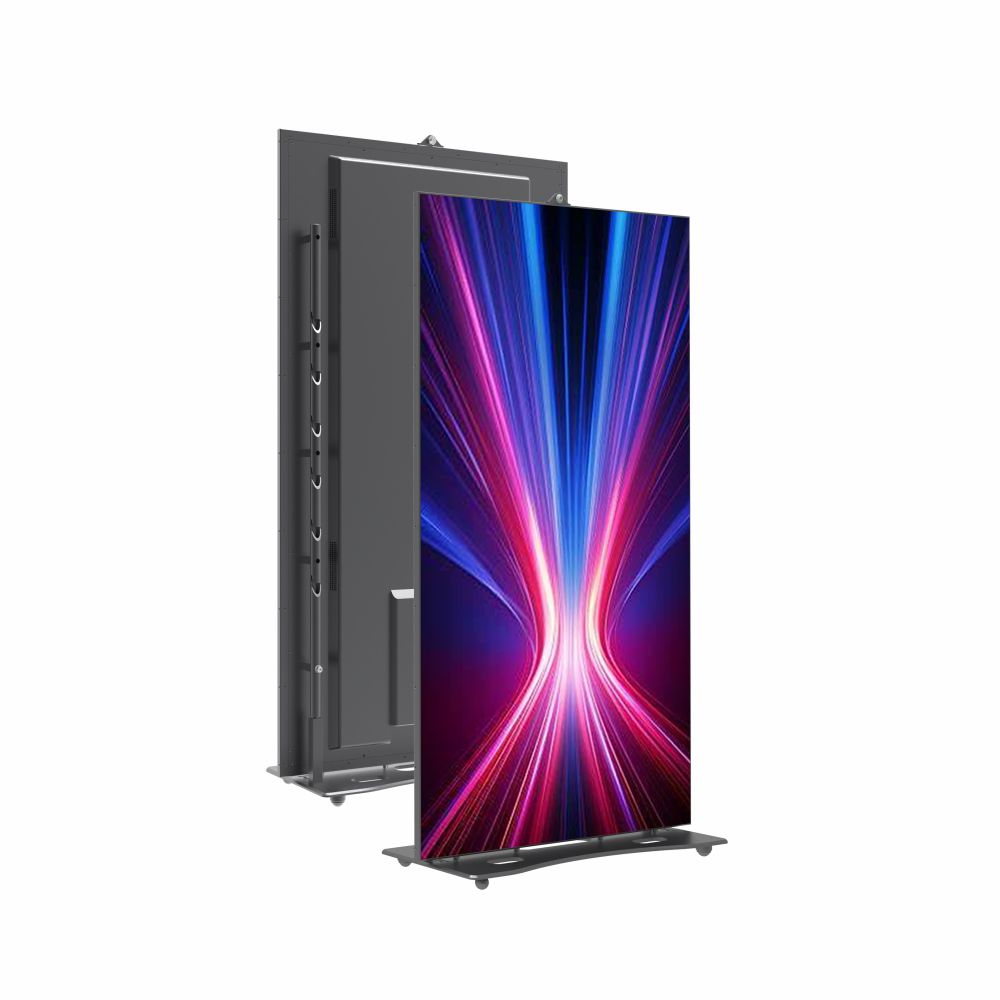

GTV-12 (Outdoor 75inches)

Dimension

LED Screen

LCD Screen

Temperature

Support High Temperature

Sensitive to Heat

LED✅

Structure

Slim Design with Water Proof

Structure is Big and Need toughened glass

LED✅

Maintenance

Easy parts maintenance

Whole piece maintenance

LED✅

Contrast Ratio

10000:1

1000~2000:1

LED✅

Pixel

Lower pixel

Enough Pixel-Easy to get 2K or 4K

LCD✅

Cost

High cost compared to LCD

Low cost compared to LED

LCD✅

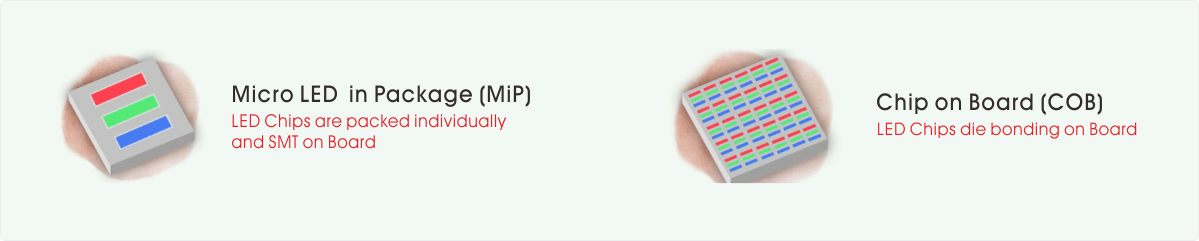

Dimension

MIP — Micro Integrated Package

COB — Chip on Board

Typical Difference

Color Gamut

DCI-P3: 92%–98%

DCI-P3: 80%–85%

MIP offers 10–15% wider color gamut

Rec.2020: 65%–75%

Rec.2020: 50%–55%

Color Accuracy (ΔE)

ΔE < 1.0 (professional-grade)

ΔE ≈ 1.5–2.5

40–60% more accurate color reproduction

Color Uniformity

> 97% module-to-module

≈85%

7–12% improvement

Contrast Ratio

8,000:1 – 10,000:1

4,000:1 – 6,000:1

40–60% higher contrast

Surface Reflection

1%–2% (black encapsulation)

4%–6% (PCB exposed)

MIP reduces reflections by ~50%

Brightness Decay (1 year)

3–5%

8–12%

Up to 50% slower decay

Failure Rate (annual)

< 0.2%

0.5%–1.0%

2–5 × more reliable

Power Consumption

10–20% lower

Relatively higher

MIP is more energy-efficient

Heat Dissipation

Even heat distribution

Uneven distribution

Better thermal management

5–8 ° C difference

10–15 ° C difference

Pixel Repairability

Single-pixel repair supported

Pixel repair extremely difficult

Greatly reduced maintenance cost

(often requires module replacement)

Flatness

< 0.05 mm

0.10–0.20 mm

Superior flatness for seamless display

Viewing Experience

Smooth, no graininess

Visible micro-reflections and graininess

—
