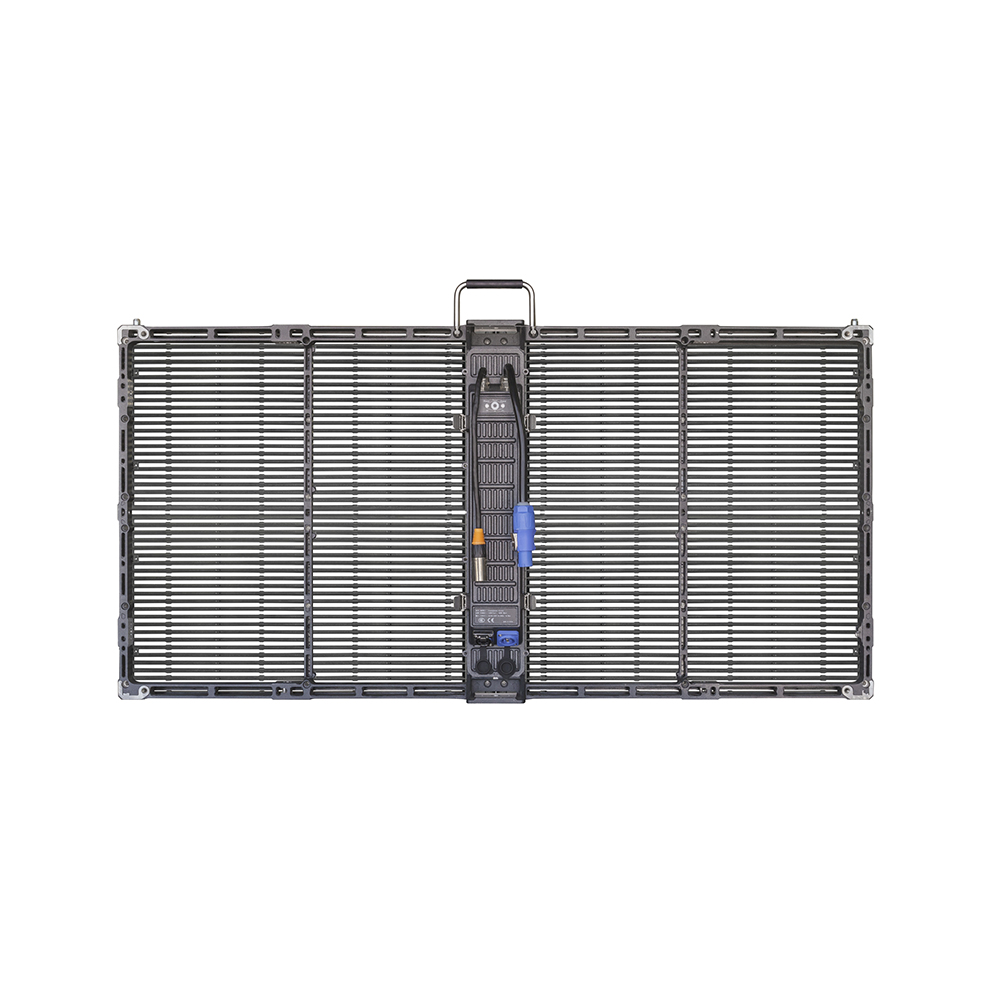

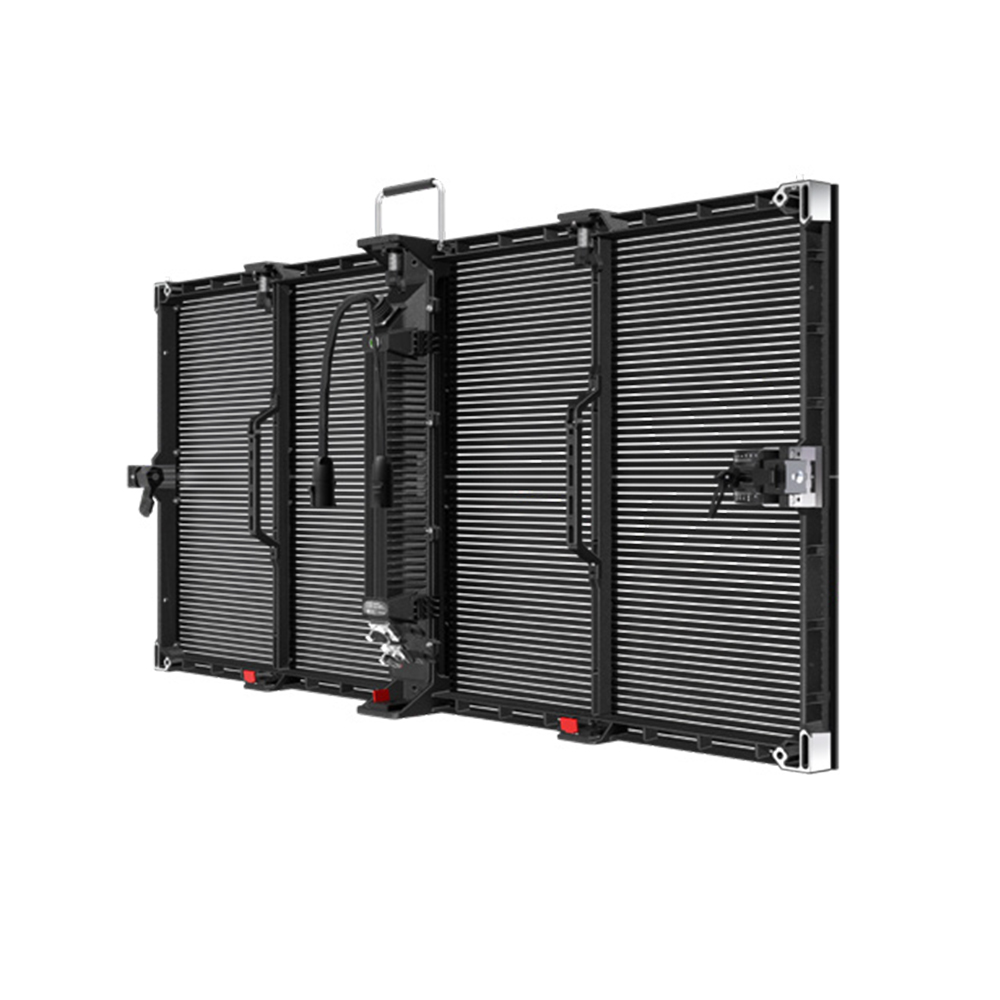

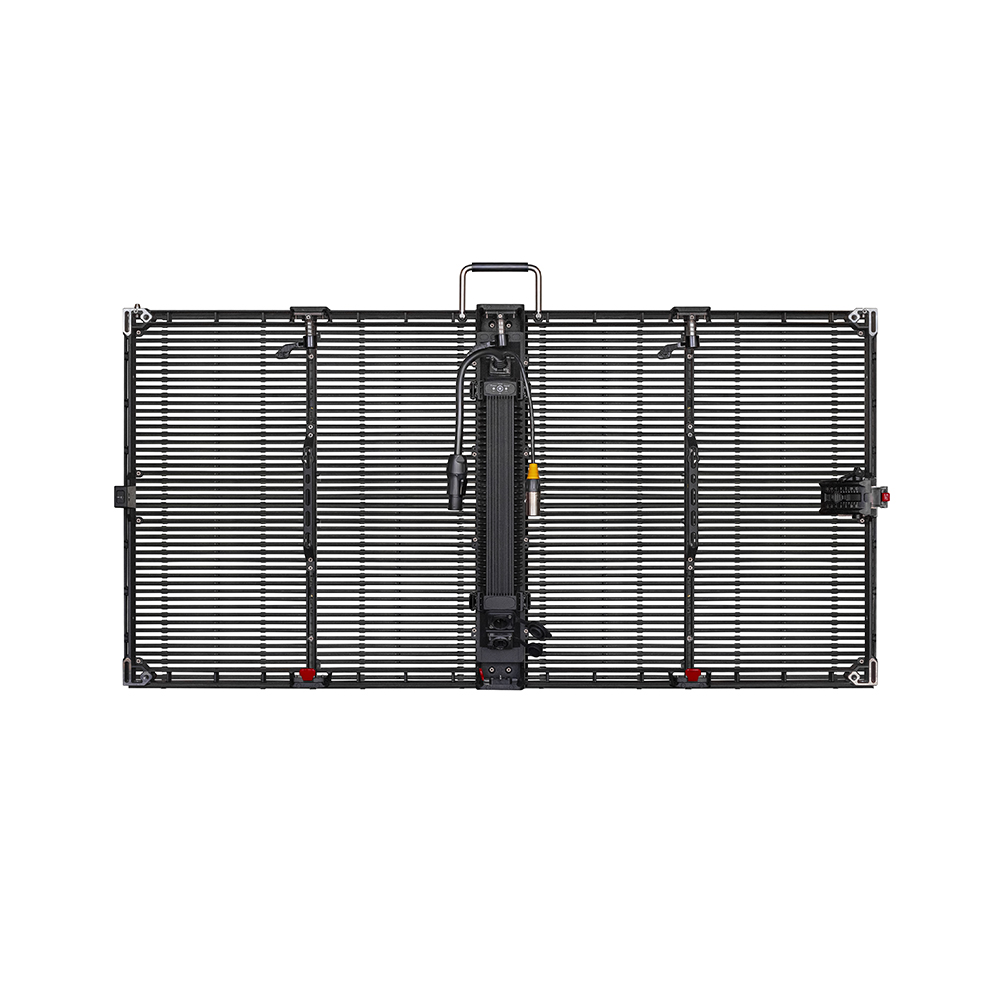

GT-O10.4-10.4
★LED lamp: adopts positive luminous lamp design, easy to automate production, strong reliability, large viewing angle, high permeability, building lighting engineering;
★Structure: can be installed and hoisted, light, thin, transparent and easy to maintain to meet high-end needs;
★Usage scenarios: It is mainly used in shopping malls, terminals, exhibition halls, office glass curtain walls and other occasions with high lighting requirements.
★Structure: can be installed and hoisted, light, thin, transparent and easy to maintain to meet high-end needs;
★Usage scenarios: It is mainly used in shopping malls, terminals, exhibition halls, office glass curtain walls and other occasions with high lighting requirements.
Parameter
Application ： OOH Media/LED Message Board
Pitch ： Horizontal 10.4/Vertical 10.4
Permeability ： 65%
LED Package ： SMD2727
Brightness ： 4500nits
Cabinet Size ： 1000*500*90mm
Cabinet Resolution ： 96*48 dot
Cabinet Weight ： 7.5kg
info@ggdisplay.com
QR code
Detail
Product Detail
_
Product Features
_
Product Specification
_
| No. | Technical parameter | |
| 1 | Pixel Pitch (mm) | Horizontal 10.4 Vertical 10.4 |
| 2 | Physical pixels (dot/M2) | 9216 |
| 3 | Permeability | 65% |
| 4 | Single cabinet physical pixels | 96*48 (rotatable 90 ° display) |
| 5 | Display resolution (M2) | 96*96 |
| 6 | MAXIMUM POWER CONSUMPTION (W/M2) | 800 (all white) |
| 7 | AVERAGE POWER CONSUMPTION (W/M2) | 260 (Animation) |
| 8 | Display brightness (nits) | 4500 |

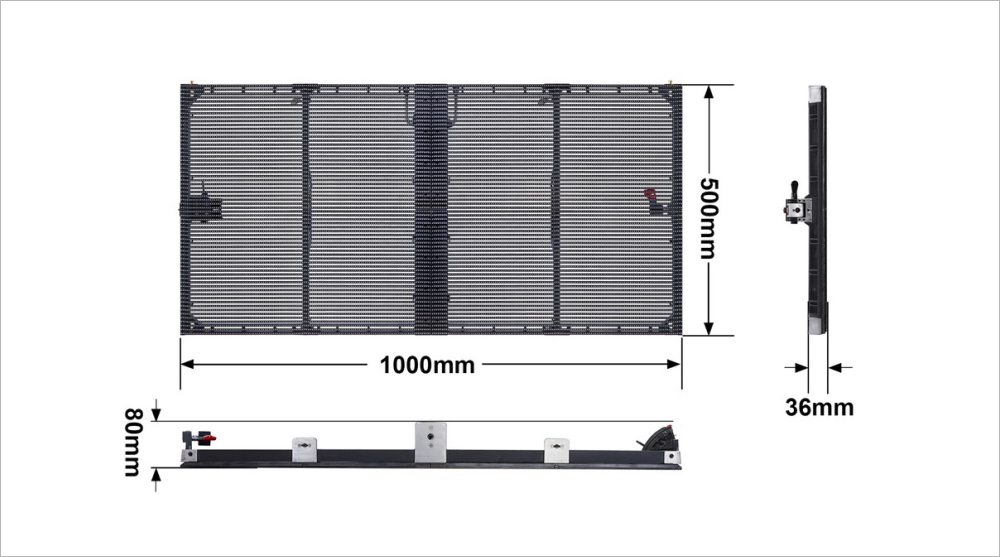

| 9 | Cabinet size (mm) | 1000*500*90mm |
| 10 | Cabinet weight (kg) | 7.5kg |
| 11 | Screen refresh rate (Hz) | 3840 |
| 12 | LED package | SMD2727 |
| 13 | Pixel composition | 1R1G1B |
| 14 | Drive IC | FM6129 |
| 15 | LED control system | Nova A5s plus |
| 16 | Display interface | DVI/HDMI/DP/Network Cable/USB/WIFI/Internet Cloud Control |
| 17 | Grayscale level | Level 65536 |
| 18 | Level of protection | IP65 |
| 19 | Shadow suppression circuit | Equip |
| 20 | Power supply parameters | >%90 efficiency PFC wide voltage 100~240VAC DC5V 80A |
| 21 | Modular voltage | DC4.6-5V |
| 22 | Input voltage | 100~240VAC+-10V |
| 23 | Operating temperature/humidity | -20~60 degrees Celsius, 20%-90% no condensation |
| 24 | The material of the box | Die-cast aluminum |

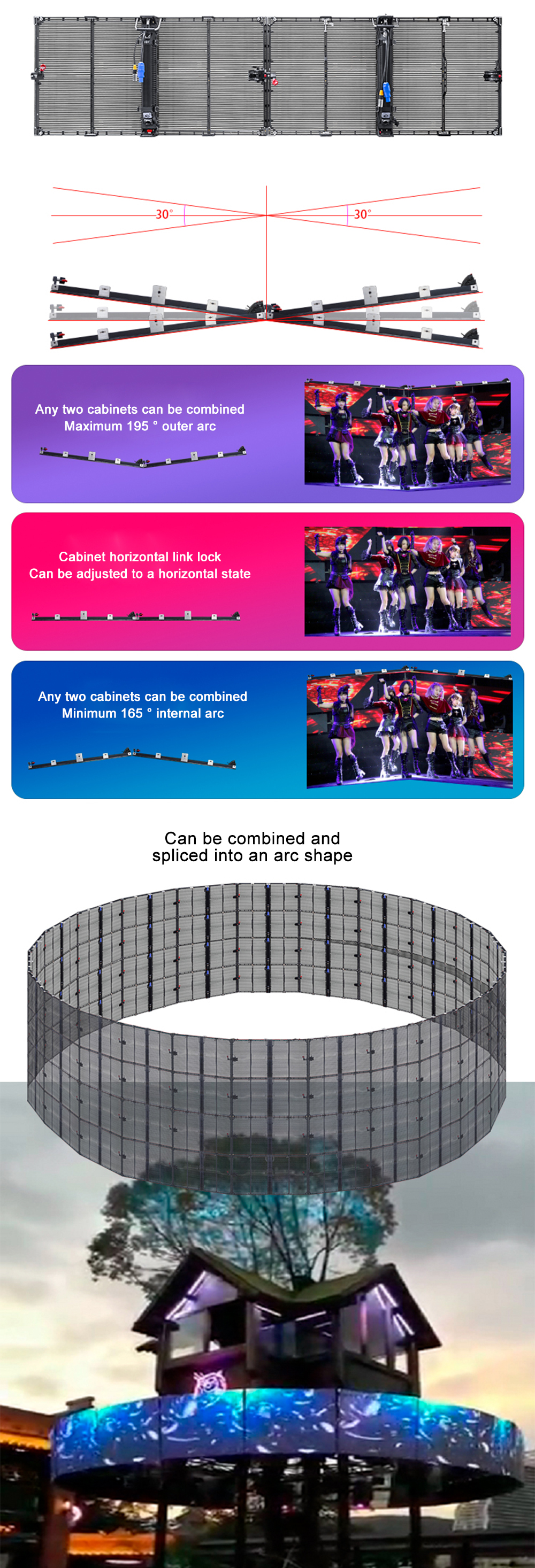

| 25 | Installation method | Lifting/fixing/fixed installation |
| 26 | LED lamp life | 100,000 hours (light up until completely extinguished) |
| 27 | Maintenance method | Front/rear maintenance |
