GR-O39T
☑ Die Casting Aluminum cabinet, slim, strong and seamless assembling.
☑ High transparent rate, the highest can reach 71%.
☑ Slim cabinet, space saving; light weight, no need to change architectural structure，adapt to different
☑ installation place.
☑ Environmental Projection: no need air-con; Winds can go through the screen, low wind drag.

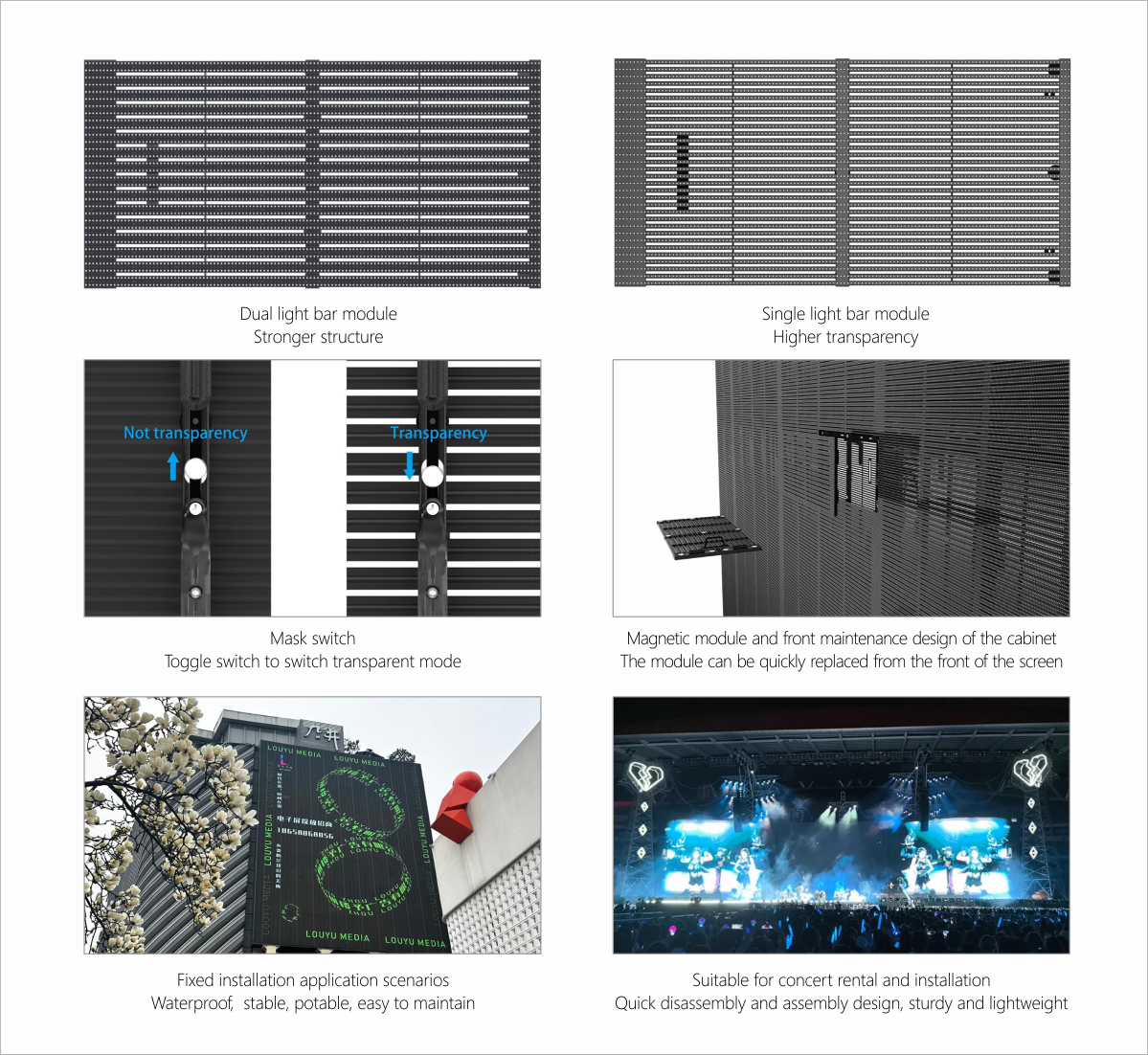

☑ Easy maintenance: fast replaced module, support front and rear service.
☑ Stacking, hanging and fixed installation are supported.
☑ The lamp & PCB are fully sealed by silicon, anti-dust and anti-collision, IP65, adapt to harsh weather.
☑ High transparent rate, the highest can reach 71%.
☑ Slim cabinet, space saving; light weight, no need to change architectural structure，adapt to different
☑ installation place.
☑ Environmental Projection: no need air-con; Winds can go through the screen, low wind drag.
☑ Easy maintenance: fast replaced module, support front and rear service.
☑ Stacking, hanging and fixed installation are supported.
☑ The lamp & PCB are fully sealed by silicon, anti-dust and anti-collision, IP65, adapt to harsh weather.
Parameter
Application ： Outdoor Rental
Pitch ： W: P3.9mm, H: 7.8mm
Permeability ： 55%
LED Package ： SMD
LED Type ： 3 in 1
Brightness ： 4500nits

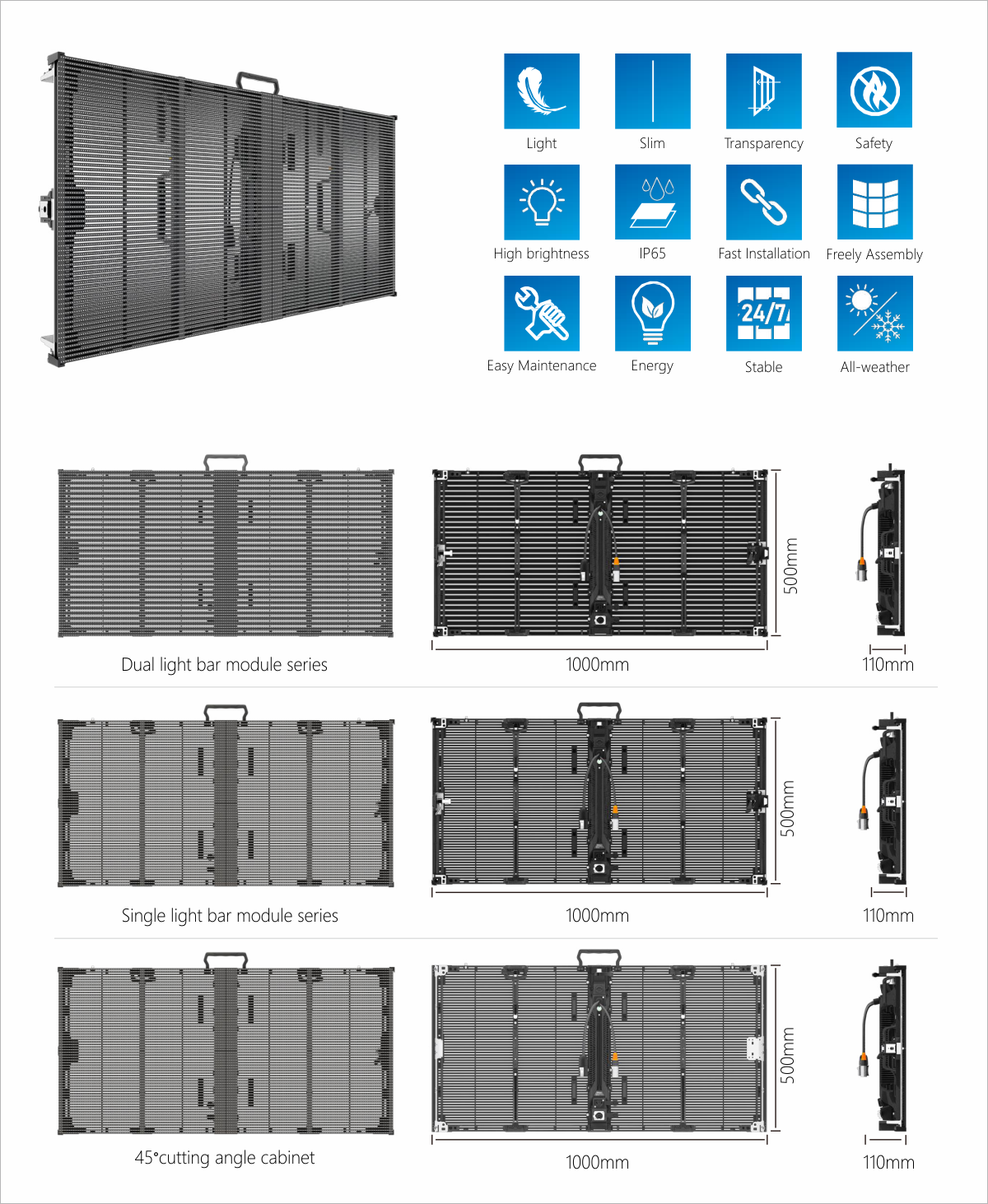

Cabinet Size ： 1000*500mm
Cabinet Material ： Die-casting aluminum
Cabinet Resolution ： 256*64 pixels
Cabinet Weight ： 7.5Kg
Maximum Power(W/sqm) ： 800W
Typical Power(W/sqm) ： 260W
Operation Power ： AC100~240V
IP Grade ： Front/Back IP65
Scan ： 1/8
Grayscale ： 14~16 bit
Viewing Angle ： 140°/120°
Refresh ： ≥3840HZ
Working Temperature ： -20℃~+55℃
Humidity ： 40%~70%, Nocondensation
Maintenance ： Front/Back
Operating Life ： ≥ 6500 hours
info@ggdisplay.com
QR code
Detail
Product Specification
_
| Item | Parameter |
| Part Number | GR-O39T |
| Pitch | W: P3.9mm, H: 7.8mm |
| Transparency | 55% |
| Brightness | 4500nits |
| LED Package | SMD |
| LED Type | 3-in-1 |
| Module Size | 1000*500mm |
| Module Pixel | 256*64 pixels |
| Scan | 1/8 |
| Housing Material | Die-cast aluminum |
| Weight/Cabinet | 7.5KG |
| AC Input Power Maximum Value(W/㎡) | 800W |
| AC Input Typical Value(W/㎡) | 260W |
| Operation Power | AC100~240V |
| IP Grade | Front/Back IP65 |
| Grayscale | 14~16 bit |
| Viewing Angle | 140°/120° |
| Refresh rate | 3840Hz |
| Working Temperature | -20~+55°C |
| Humidity | 40%~70%, Nocondensation |
| Maintenance | Front/Back |
| Operating Life | ≥ 6500hours |

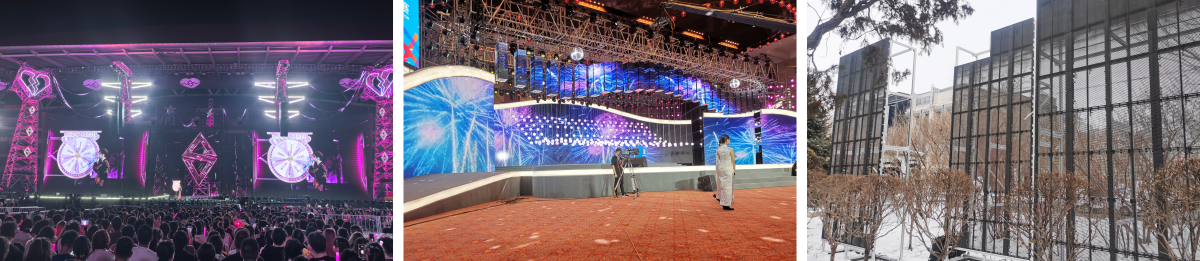

Project Case
